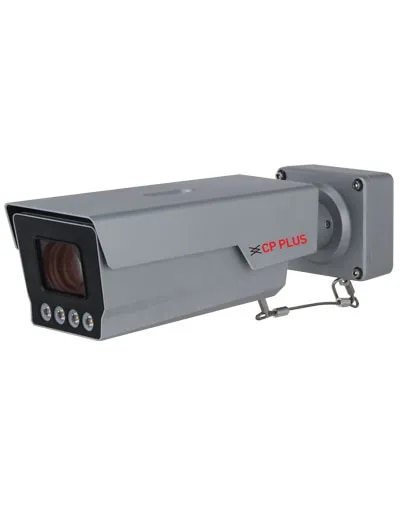

CP Plus New STQC 4mp ANPR AI CCTV CTC Technology Camera CP-UNC-TT41L3-VMD-Q

Specification – NEW STQC COMPLAINT

Powerful 4MP IR AI Enforcement Camera with Motorized 10-50mm Lens & 140dB WDR ANPR, and IP67 weatherproof design for advanced vehicle monitoring.

The CP Plus CP-UNC-TT41L3-VMD-Q is a high-performance 4MP IR AI Enforcement Camera designed for advanced vehicle monitoring and automatic number plate recognition (ANPR) applications. Equipped with a cutting-edge 1/1.8″ 4MP CMOS sensor, CP PLUS CP-UNC-TT41L3-VMD-Q camera delivers crystal-clear images at a maximum resolution of 2688 x 1520 pixels at 30 fps, ensuring accurate identification of vehicle details even under challenging lighting conditions.

The CP PLUS CP-UNC-TT41L3-VMD-Q motorized vari-focal lens with a wide focal length range of 10 to 50 mm and a bright aperture of F1.2 allows flexible zooming for distant or close-up views. With a remarkable 140 dB wide dynamic range (WDR) and advanced IR illumination up to 30 meters with four adjustable IR LEDs, the camera supports day and night operation with ICR auto-switch for sharp images around the clock.

CP PLUS CP-UNC-TT41L3-VMD-Q model supports multiple video compression formats, including H.265 and H.264 variants, enabling efficient bandwidth and storage usage. The CP PLUS CP-UNC-TT41L3-VMD-Q features sophisticated AI-powered analytics such as vehicle type, logo, and color recognition, helmet detection, speed and lane violations, and traffic flow monitoring.

Key Technical Features

1/1.8″ 4MP CMOS sensor, 2688 x 1520 @ 30fps resolution

Motorized vari-focal lens: 10–50mm with F1.2 aperture

140dB Wide Dynamic Range (WDR) for superior image clarity

Four adjustable IR LEDs with 30m night vision range

AI analytics: ANPR, vehicle type and color recognition, helmet detection, traffic violation capture

Video compression: H.265, H.264 (M/H/B), MJPEG

Cybersecurity: AES 256-bit, HTTPS, IP/MAC filtering, trusted boot

Weatherproof: IP67, Vandal-resistant IK10

Multiple connectivity options: Ethernet RJ45, RS-232, RS-485, GPS, PoE

Supports Micro SD storage up to 512GB, SFTP, NAS support

Operating temperature: –40 °C to +65 °C

Dimensions: 466.4 × 135.8 × 134.1 mm; Weight: 3.9 kg

Compliant with ISO9001, CE, FCC, BIS certifications

Main Processor High-performance embedded processor

Image Sensor 1/1.8” CMOS (1.411 cm)

Shutter Speed Single shutter

Electronic Shutter Auto/Manual 1/50 s–1/100,000 s

Image Rotation 2688 (H) × 1520 (V) (OSD black background is not calculated in the pixels)

Noise Reduction 3D NR

S/N Ratio >56dB

Minimum Illumination 0.0001 lux

Day/Night Supports ICR auto switch: IR cut-off filter (IRCF) with the polarizing filter is used during the daytime, and switches to the common IR cut-off filter at night

Focal Length 10mm–50mm Motorized

Max. Aperture Max. F1.33

Field of View Horizontal: 9.4°–40.8° Vertical: 5.4°–22.9° Diagonal: 10.7°–46.9°

Exposure Mode Auto, Manual (Select from shutter values or customize shutter range)

Gain Scope 0-100

Bit Rate Control CBR; VBR

Video Resolution 4M (2688 × 1520)/ 1080P (1920 × 1080)/ UXGA (1600 × 1200)/ 720P (1280 × 720)/ D1 (704 × 576)/CIF (352 × 288)

Video Frame Rate Main stream (2688 × 1520@25/30fps), (1920 x 1080@50/60fps) Sub stream (1600 × 1200@25/30fps)

Video Bit Rate H.264: 32kbps–32767kbps; H.265: 32kbps–32767kbps; MJPEG: 512kbps–32767kbps

Video Compression H.265; H.264M; H.264H; MJPEG

Picture Encoding Format JPEG

Auto Gain Control Support

Signal Processing Digital Signal Process

WDR 140dB

White Balance Auto; Manual; Outdoor; Natural; Street Lamp; Partial white balance

BLC Auto

HLC Auto

Bad Pixel Correction Yes

Edge Enhancement Yes

Composite Image Supports combining up to 3 source images, and 1 close-up image into a composite image

Trigger Mode Video detection/radar*

OSD Overlay Time, address, device SN, lane No., plate number, plate color, vehicle logo, vehicle type, vehicle color, vehicle size, vehicle speed, country/region, event (violation name), and motorcycle attributes (type, number of people, and helmet)

Storage 1, supports maximum 512 GB SD card local storage

Alarm Event Storage full, storage error, external alarm, no storage space, license plate blocklist, illegal access, and security fault

Automatic Network Replenishment (ANR) Platform, FTP (SD card is required)

Image Tampering Prevention Verifies watermarks in videos and images

Time Synchronization NTP; GPS

Security Authorized username and password, MAC address binding, HTTPS encryption, and network access control

Positioning GPS

Auto registration Yes

Vehicle with NO License Plate Detection Support

Effective Range for ANPR 30mtr

Detection Accuracy (min) 98%

Speed Detection Range 0 km/h–180 km/h

Detection Target Motor vehicle; motorcycle

Vehicle Logo Acura; Alfaromeo; Ashok leyland; Astonmartin; Audi; Baic; Bently; Benz; BMW; Buick; BYD; Cadillac; Chery; Chevrolet; Chrysler; Citroen; Dacia; Daihatsu; Datsun; Dodge; DS; Ferrari; Fiat; Force; Ford; Foton; Geely; GMC; Greatwall; Hino; Honda; Hyundai; Infiniti; Isuzu; Iveco; Jac; Jaguar; Jeep; Kia; Kinglong; Land; Lexus; Lifan; Lincoln; Mahindra; MAN; Maserati; Mazda; Mercury; MG; Mini; Mitsubishi; Nissan; Opel; Peugeot; Porsche; Renault; Rollsroyce; Saab; Scania; Seat; Skoda; Smart; Subaru; Suzuki; Tata; Tesla; Toyota; UD; Volkswagen; Volvo

Vehicle Color Recognition White, pink, black, red, yellow, gray, blue, green, dark orange, purple, brown, and silver gray (color recognition is not supported during night time)

ANPR Adopts CP Plus developed algorithms to recognize license plate numbers and letters

Vehicle Type Recognition Vehicle head: Large bus, heavy truck, medium truck, sedan, van, light truck, medium bus, SUV, MPV, and pickup Vehicle tail: SUV, large bus, sedan, light truck, pickup, medium truck, van, and heavy truck

Motor Vehicle Violation Snapshot Speeding; driving slow; wrong-way driving; illegal lane change

Motorcycle Violation Capture Overloading, not wearing a helmet

Traffic Flow Detection Statistics on vehicle flow, average speed, vehicle type, lane occupancy, average time headway, average queue length, and road status

Traffic Event Motor vehicle illegal stopping on the roadway; traffic congestion

Network 1 × RJ-45 Ethernet port, 10/100/1000 M network transmission

SDK and API Yes

RS-485 2, connecting to devices such as radar

RS-232 2, con is used for serial debugging and R T G is for connecting to radars

Alarm Input 3 channels

Alarm Output 2 channels. 1 for relay, and 1 for optocoupler

Audio Compression G.711A; G.711Mu; G.726

Audio Input 1 Channel

Audio Output 1 Channel

Lane Coverage 1–2 lanes

IR Distance 23 m–30 m (75.46 ft–98.43 ft) (adjustable brightness)

IR Light Yes

IR Number 4 illuminators (830 nm LED illuminators, adjustable brightness)

Protocol HTTP, HTTPS, TCP/IP, UDP, ICMP, IGMP, FTP, DHCP, DNS, DDNS, PPPoE, NTP, SSL, RTP, RTSP, RTCP, UPnP, SMTP, SNMP, IGMP, QoS, 802.1X, IPv4 and IPv6, ONVIF (Profile S, Profile G, Profile T)

Browser IE: IE 9–11, Chrome: Chrome 41 and earlier, Firefox: Firefox 49 and earlier, For Win 10 users, run the browser as administrator

Power Supply 12–36 VDC, PoE

Power Consumption ≤ 13W

Operating Temperature -40°C to +65°C (−40°F to +149°F)

Storage Temperature -40 °C to +65 °C (–40 °F to +149 °F)

Operating Humidity 10%–90%

Storage Humidity 10%–90%

Protection Grade IP67 & IK10

Dimensions 466.4 mm × 135.8 mm × 134.1 mm (18.36” × 5.35” × 5.28”) (L × W × H)

Net Weight 3.9 kg

Installation Supports installation with universal mounting bracket, or side-mounted on pole with mounting bracket

System Overview

CP PLUS cameras and NVRs that come with the ANPR technology support different plate cut-outs, as well as overview picture snapshots and video recording. This enables you to monitor in real-time the various license plates in present in the vicinity. Being embedded with the Whitelist database adds further to these cameras because that lets them control the barriers automatically. These cameras have also been inculcated with the latest WDR technology.

Algorithmic Working

This design has been embedded with the ANPR algorithm inside the device to automatically and efficiently keep a track of the cars coming in and out of the premises.

Automatic & Accurate

The automatic number plate recognition technology is being widely used these days as this enables accurate and automatic reading of every vehicle’s number plate that is crossing a border or an entrance and then that reading is automatically run through the system to detect if the vehicle should be allowed to enter or not.

Live Viewing

Unlike some, this technology enables you to record the picture feed but view it live as well at your convenience. On top of that, the advantages of high-resolution video recording are numerous.

True Day/Night (ICR)

When the scene is too dark, the image is captured by illuminating an infrared light through the camera onto the scene that greatly helps with making the scene visible for the lens. It delivers color images during the day and automatically switches to the monochrome feature as the scene darkens.

Increased Efficiency

These products have proven to be so successful due to their multiple linkages to control barriers and other automation systems to increase the proficiency and keep you safe at all times.

Vehicle Detection

The intelligent detection technology that has been induced in this camera enables it to accurately detect the number of vehicles and humans in an image. This technology also comes in handy when one wants to detect motion in the camera’s frame as well as video tempering, scene changing, people gathering, parking detection, and heat map.

gCMOB/ iCMOB

Designed to allow users to access and control live streaming from CP PLUS IP Cameras, DVRs/ NVRs and Video Door Phones, the CP PLUS gCMOB/ iCMOB application offers a host of features such as Easy GUI, up to 16 live viewing split-ups; InstaOn cloud support; Playback; digital zoom ins; two-way talk, and more
